TEPVRS SMART+

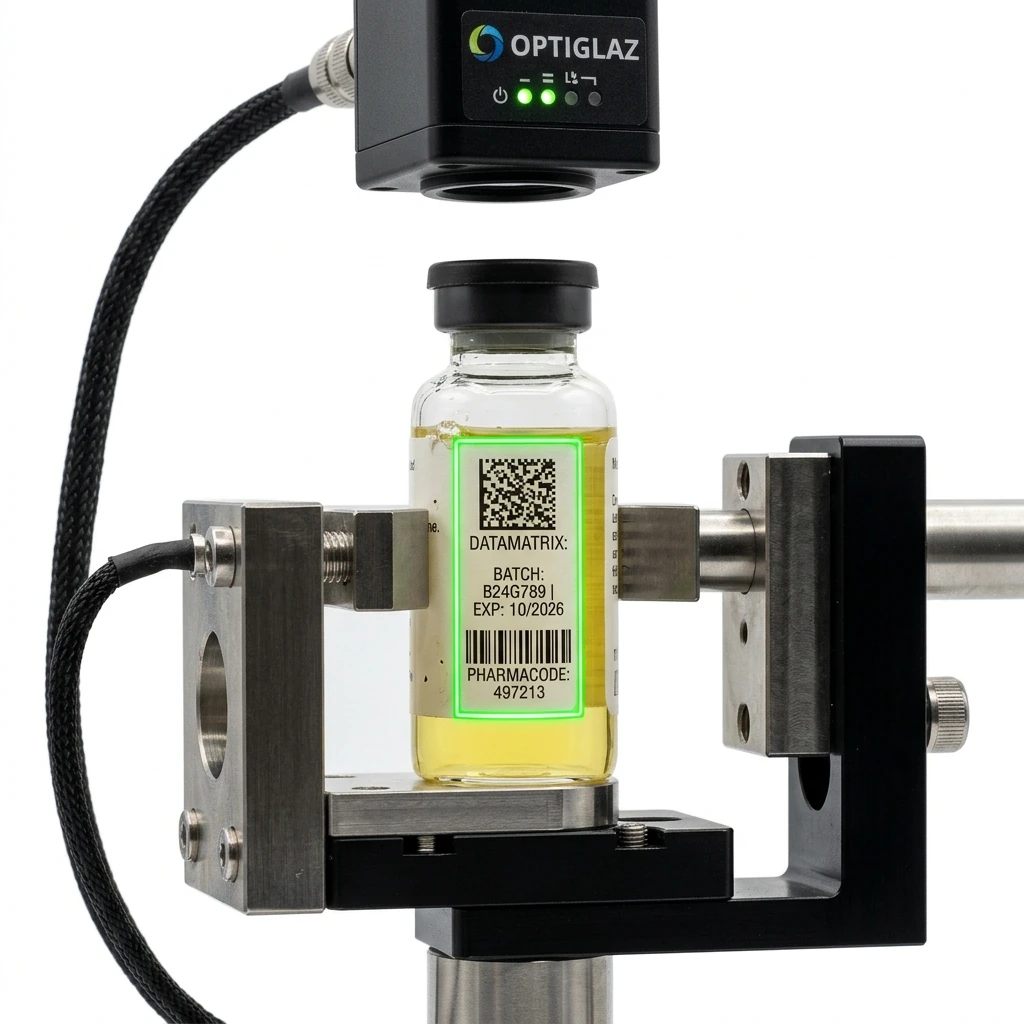

Smart ID, OCR & 2D DataMatrix
99.98% Grading AccuracySimultaneous in-line decoding and ISO grade verification of 2D DataMatrix codes, batch text, and pharmacode on cartons.
Zero-Defect Line Execution & Rejection
Every critical process is sensor-verified to prevent defect escapes and maintain rigorous GMP compliance.
01Precision Rejection with Reject Confirmation
High-speed pneumatic flipper/pusher mechanism with downstream confirmation sensor ensuring zero unsealed carton escape.
02Secure, Locked Reject Collection
Dedicated lockable SS304 stainless steel reject containment bin preventing unauthorized access and maintaining strict batch clearance.
03Intelligent Alarms & Real-Time Notifications
Three-color stack light tower, acoustic sounder, and live HMI popups for consecutive reject thresholds and low label roll warnings.
04Recipe-Based Rapid Changeovers
One-click recipe changeover storing carton size, conveyor width, printer head position, and label applicator settings.
Seamlessly Integrates with Your Packaging Line
Custom-engineered brackets and standardized PLC signals allow drop-in installation on all major Indian and international blister packers.
Modular IPC Mounting Configurations
Select from 3 standard factory mounting formats designed for seamless cleanroom integration and operator ergonomics.
High-Speed Inline • 300 PPM

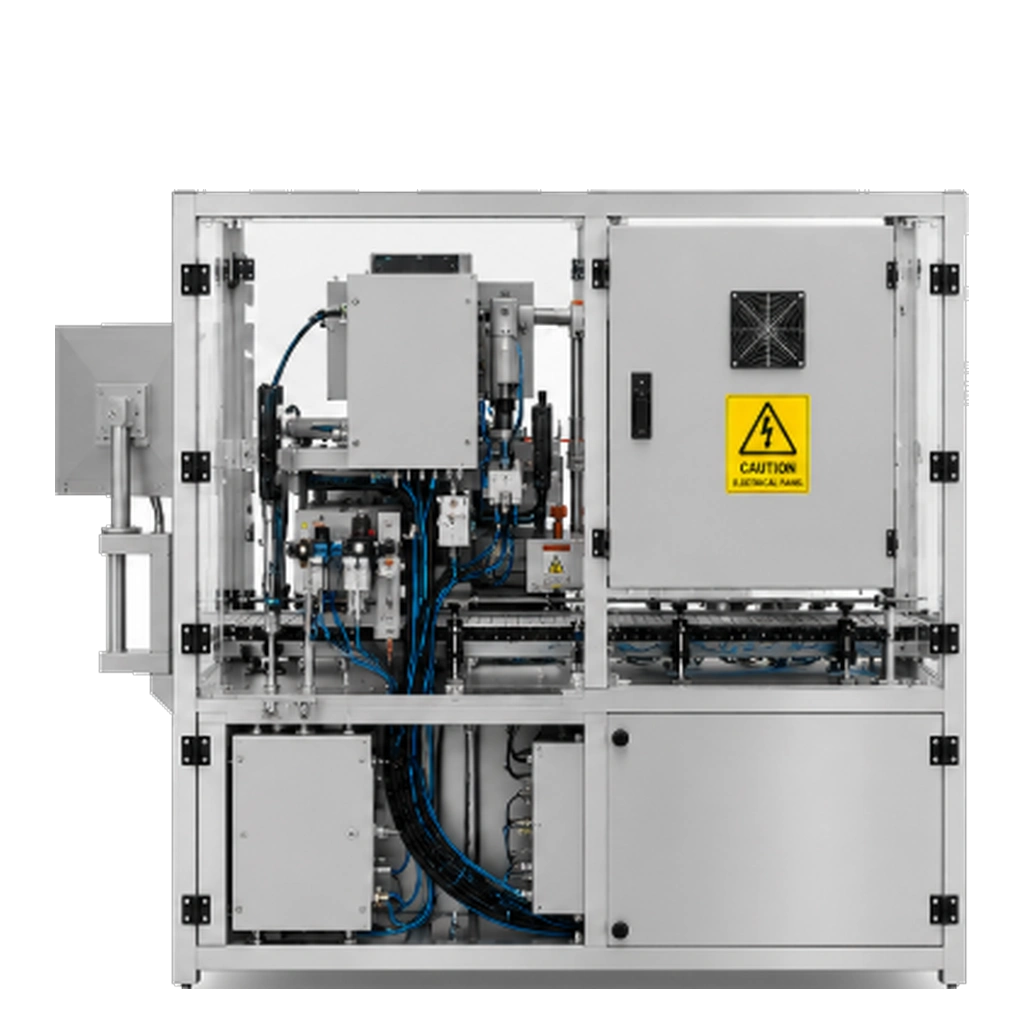

TEPVRS-SMART+ High-Speed Tamper-Evident Station
Full-featured inline tamper-evident labeling station with 4-side gripping conveyor, dual label applicators, and dual vision cameras.
Technical Specifications & Performance Data
Comprehensive electrical, mechanical, camera optics, printing, and industrial computing parameters.
| Tamper-Evident Labeling Station | ||
|---|---|---|
| Parameter | TEPVRS-SMART+ | TEPVRS-SLIM / COMPACT |
| Camera Type | Smart ID + OCR X2 (For Both Side Inspection) | GigE Industrial Cameras |
| Algorithms | OCR Max, IDMax, 2DMax, Stacked Symbologies, Tamper Labels | OCR Max, IDMax, 2DMax, Stacked Symbologies, Tamper Labels |
| Lighting | In Built Multi-Zone Strobe | External Bar Light |
| Touchscreen | Yes (15.6" Full HD Industrial Display) | No (Remote Host Controlled) |
| Lens Architecture | Liquid Lens Auto Focus (Wide -6.2, Medium -7.7, Narrow -16, L-16 mm) | Fixed Focal Length (8, 12, 16, 25, 35, 50 mm) |
| Power Supply | 24 VDC ±10%, approx 3–5 W | 24 VDC PoE |
| Print Resolution | up to 600 DPI |
| Print Height | 12.5 (mm) / Per Head |
| Power Supply | 100–240 VAC, 50/60 Hz, 2A |
| Connectivity | Gigabit Ethernet |
| Printer Type | TIJ / Laser |
| Max No. of Heads | Up to 2 Heads |
| Power Supply | 24 VDC (DC/DC/DC versions) |
| Connectivity | Gigabit Ethernet |
| Memory | Up to 24 KB |
| Protection | Industrial-grade |
| Digital Inputs | 14 DI CPU-Integrated |
| Digital Outputs | 10 DO CPU-Integrated |
| Conveyor Type | Gripping Conveyor with Labeling |
| Frame Structure | SS304 Stainless Steel |
| Conveyor Length | 2000 mm |
| Machine Weight | 300 kg |
| Processor | Intel i5 |
| OS | Windows IoT |
| SSD / RAM | 500 / 16 GB |
