PR PVR Tube+
Smart ID, OCR & Pharma-code Verification
99.98% Grading AccuracySimultaneous in-line decoding and ISO grade verification of 2D DataMatrix codes, batch numbers, and pharmacode on tube crimp.
300 PPM
Max Tube Line Velocity
High-speed rotary indexing and continuous multi-lane tube serialization.Rotary Indexing
Precision Tube Alignment Gap & Printing
Rotary chuck mechanism aligning tube crimp and eye-mark precisely with printhead.Permanent Contrast
Precision Laser Coding & Specialty Inks
Permanent high-contrast laser coding and fast-drying inks across diverse tube substrates.Max 300x100mm
Min 25x30mm (W x H) Envelope
Universal dimensional accommodation for aluminum, laminated, and plastic pharma tubes.Seamlessly Integrates with Your Packaging Line
Custom-engineered brackets and standardized PLC signals allow drop-in installation on all major Indian and international blister packers.
Zero-Defect Line Execution & Rejection
Every critical process is sensor-verified to prevent defect escapes and maintain rigorous GMP compliance.

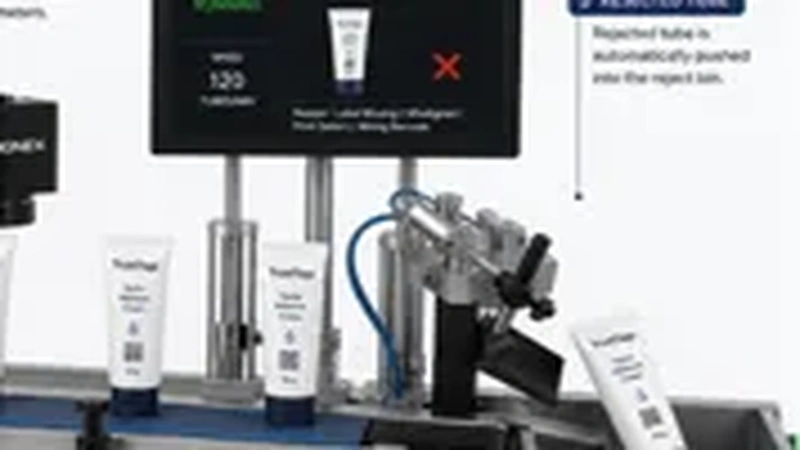

01Precision Rejection with Reject Confirmation
High-speed pneumatic starwheel/pusher system with downstream optical sensors verifying that defective tubes are discarded.
02Secure, Locked Reject Collection
Dedicated SS304 lockable reject containment bin preventing unverified tubes from re-entering the primary packaging line.
03Intelligent Alarms & Real-Time Notifications
Three-color stack light tower, acoustic buzzer, and live HMI error logs for low ink warnings and consecutive reject triggers.
04Recipe-Based Rapid Changeovers
Pre-programmed digital recipes for various tube diameters and materials. Recalls print layouts and strobe timing in 1 click.
Modular IPC Mounting Configurations
Select from 3 standard factory mounting formats designed for seamless cleanroom integration and operator ergonomics.
PR PVR Wall Mount
PR PVR Wall Mount Console
Sealed stainless steel wall-mounted operator console with IP65 cable gland entries. Keeps cleanroom floors completely clear.
Technical Specifications & Performance Data
Comprehensive electrical, mechanical, camera optics, printing, and industrial computing parameters.
| Tube Packaging Lines | ||
|---|---|---|
| Parameter | PR PVR Tube+ (Standard) | Rotary High-Speed Line |
| Host Machines | Tube Line | Continuous Rotary Line |
| Max Throughput | As per Host machine | Up to 300 PPM |
| Frame Structure | SS304 | Aluminum | SS304 Cleanroom Finish |
| Bracket Size | 450 x 450 x 200 (mm) | Custom Line Brackets |
| Machine Weight | 25 kg | 35 kg |
| Print Resolution | up to 600 dpi |
| Print Height | 12.5 mm to 50.8 mm (Up to 2 Inch Head) |
| Power Supply | 100–240 VAC, 50/60 Hz, 2 A |
| Connectivity | Gigabit Ethernet |
| Printer Type | TIJ, TTO, CIJ, Laser |
| Max No. of Heads | up to 8 Heads |
| Power Supply | 24 VDC (DC/DC/DC versions) |
| Connectivity | Gigabit Ethernet |
| Memory | Upto 24 KB |
| Protection | Industrial-Grade |
| Digital Inputs | 14 DI CPU-Integrated |
| Digital Outputs | 10 DO CPU-Integrated |
| Camera Type | Smart (Smart+), GigE (Smart) |
| Algorithms | OCRMax, IDMax, 2DMax, Stacked Symbologies |
| Lighting | In-built / Outer Light |
| Connectivity | Gigabit Ethernet |
| Lens | Fixed focal length - 8, 12, 16, 25, 35, 50 mm |
| Power Supply | 24 VDC / PoE |
| Processor | Intel i5 |
| OS | Windows IoT |
| SSD / RAM | 500 / 16 GB |
| Touchscreen | Yes |
