Secondary Packaging Serialization & Tamper-Evident Station

TE-PVR SMART+

01Security Sealing

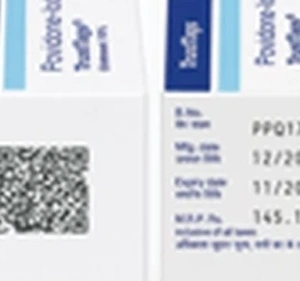

Dual-Sided Tamper Evident

Printing, Labeling & Vision

Simultaneous application of transparent or void security seals on both carton flaps in a single high-speed cycle.

CORE OPERATIONAL SPECIFICATIONSTE-PVR SMART+

Line Speed

300 PPM

Maximum Line Throughput

High-speed inline dual-sided tamper-evident labeling at 300 packs per minute.

Dimensions

Max 100x200x100mm

Label Size Range

Min 28x80x30 mm up to Max 100x200x100 mm carton envelope for versatile packaging.

Line Safety

Smart Alarms

Interactive Alarms & Real-Time Notification

Audible alarm horn, 3-color light tower, and live real-time HMI notification alerts.

Changeover

1-Click Recall

One-Click Recipe Changeovers

Automated rapid recipe recall for conveyor width, printhead, and applicator settings.

Universal Interlock

Seamlessly Integrates with Your Packaging Line

Custom-engineered brackets and standardized PLC signals allow drop-in installation on all major Indian and international blister packers.

Romaco PromaticContinuous Cartoner✓ Synchronized

Bosch / Syntegon CUTIntermittent Cartoner✓ Synchronized

Marchesini BA / MAHigh-Speed Cartoner✓ Synchronized

IMA Dynamica / FlexaPackaging Cartoner✓ Synchronized

Pampac CartonPackPharma Cartoner✓ Synchronized

Zero-Defect Line Execution & Rejection

Every critical process is sensor-verified to prevent defect escapes and maintain rigorous GMP compliance.

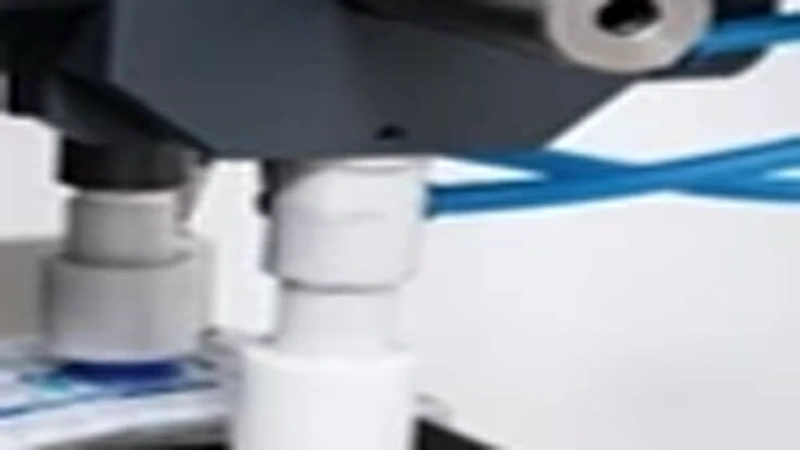

Positive Rejection Validation

Precision Rejection with Reject Confirmation

High-speed pneumatic carton reject arm with downstream optical confirmation sensor ensuring zero unsealed or defective cartons proceed downstream.

✓ Pneumatic Reject Pusher✓ Optical Reject Confirmation✓ Zero Escapes Tolerance

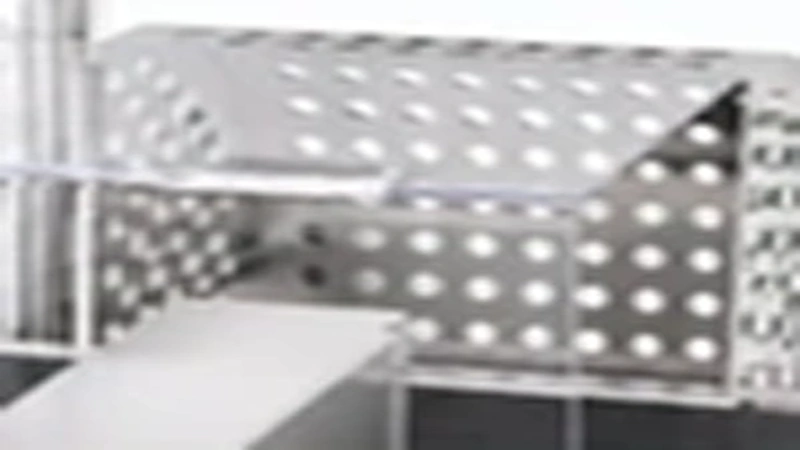

GMP Line Clearance

Secure, Locked Reject Collection

Dedicated lockable perforated stainless steel reject containment bin preventing unauthorized access and maintaining strict batch clearance.

✓ Key / Supervisor Access Lock✓ Perforated SS304 Enclosure✓ Full Defective Carton Segregation

Anti-Tampering Directive

EU FMD Compliant Ready

Fully compliant with European Union Falsified Medicines Directive (EU FMD 2011/62/EU) and US FDA requirements for tamper-evident packaging.

✓ EU FMD Directive Ready✓ 21 CFR Part 11 Audit Trail✓ Cryptographic Batch Logging

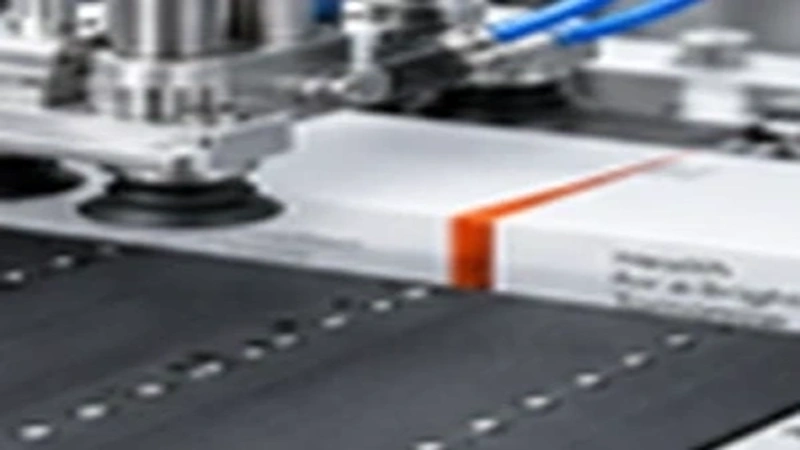

GMP Sanitary Standards

21 CFR & GAMP Compliant (Print head, Camera & conveyor)

Fully validated design with motorized hold-down guides, cleanroom-grade SS304 frame, user access management, and automated electronic audit trails.

✓ Hold-Down Synchronization✓ GAMP 5 Validation Ready✓ Audit-Ready Digital History

Modular IPC Mounting Configurations

Select from 3 standard factory mounting formats designed for seamless cleanroom integration and operator ergonomics.

High-Speed Inline • 300 PPM

📐 Cleanroom CAD1:1 Spec

MOUNTING & INTEGRATION FORMAT

TE-PVR-SMART+ High-Speed Tamper-Evident Station

Full-featured inline tamper-evident labeling station with 4-side gripping conveyor, dual label applicators, and dual vision cameras.

✓Motorized 4-Side Gripping Conveyor

✓Dual Servo Label Applicators

✓Both-Side Vision Inspection Cameras

✓EU FMD & 21 CFR Part 11 Compliant

Engineering Specifications

Technical Specifications & Performance Data

Comprehensive electrical, mechanical, camera optics, printing, and industrial computing parameters.

Distinct Specifications

	Tamper-Evident Labeling Station
Parameter	TE-PVR-SMART+	TE-PVR-SMART
Camera Type	Smart ID + OCR X2 (For Both Side Inspection)	GigE Industrial Cameras
Algorithms	OCR Max, IDMax, 2DMax, Stacked Symbologies, Tamper Labels	OCR Max, IDMax, 2DMax, Stacked Symbologies, Tamper Labels
Lighting	In Built Multi-Zone Strobe	External Bar Light
Touchscreen	Yes (15.6" Full HD Industrial Display)	No (Remote Host Controlled)
Lens Architecture	Liquid Lens Auto Focus (Wide -6.2, Medium -7.7, Narrow -16, L-16 mm)	Fixed Focal Length (8, 12, 16, 25, 35, 50 mm)
Power Supply	24 VDC ±10%, approx 3–5 W	24 VDC PoE

General Specifications

Printer

Print Resolution	up to 600 DPI
Print Height	12.5 (mm) / Per Head
Power Supply	100–240 VAC, 50/60 Hz, 2A
Connectivity	Gigabit Ethernet
Printer Type	TIJ / Laser
Max No. of Heads	Up to 2 Heads

PLC

Power Supply	24 VDC (DC/DC/DC versions)
Connectivity	Gigabit Ethernet
Memory	Up to 24 KB
Protection	Industrial-grade
Digital Inputs	14 DI CPU-Integrated
Digital Outputs	10 DO CPU-Integrated

Inspection

Conveyor Type	Gripping Conveyor with Labeling
Frame Structure	SS304 Stainless Steel
Conveyor Length	2000 mm
Machine Weight	300 kg

System

Processor	Intel i5
OS	Windows IoT
SSD / RAM	500 / 16 GB
